15mm M3 lead screw slider stepper motor features:

The SM15-45L is a stepper motor equipped with a bracket, lead screw and relative motion slider. The output shaft has a lead screw with a pitch of 0.5mm, and the lead screw and the lead screw supported by the lead screw rotate into thrust.
The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
In terms of actuators, the subdivision drive method is used to satisfy.
Due to the excellent characteristics of small size, high precision and easy control, such motors are widely used in beauty equipment, medical equipment, vending machines, rapid detection, cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields.
The input part of the motor is FPC, but it can be changed to the form of connecting wire, PCB, etc. according to customer needs.
Mounting brackets can be replaced according to customer requirements.

Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application

15mm M3 lead screw slider stepper motor Specifications:

Drawing of 15mm plastic slider stepper motor with 45mm stroke:

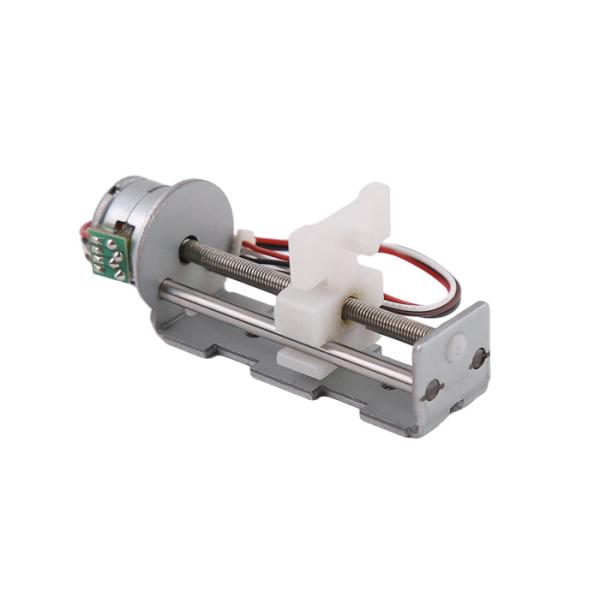

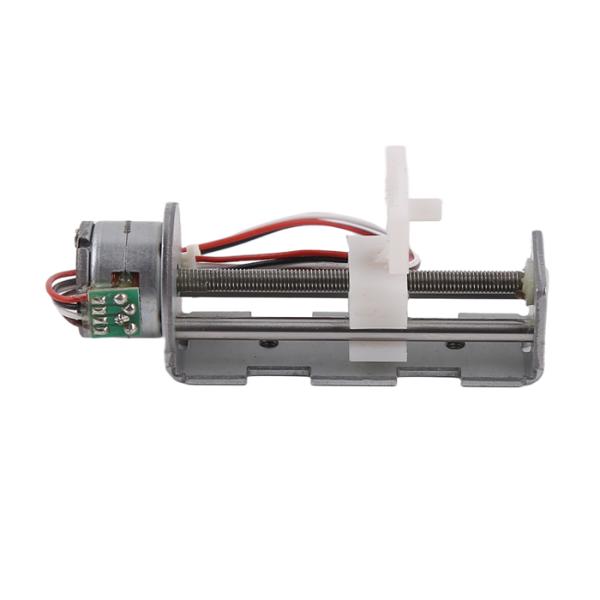

Product display for 15mm plastic slider stepper motor:

Customers can customize content:

1. In terms of the outer diameter of the motor, different sizes such as 6 8 10 15 20 25mm can be selected according to the customer's use environment and space strength.

2. The outlet position can be freely selected within a 360-degree range to meet the installation requirements in the best state. At the same time, the connector can choose lead, PCB, FPC bare pin.

3. According to customer requirements, customers can customize the effective stroke of the motor within a certain range, mainly considering the diameter and length of the lead screw.

Usually the maximum length of M2 screw is 50mm, M3 screw is 100mm, M4 screw is 100mm. We can also do 150mm. Small motors use a lead screw with an excessively large diameter, which consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.

4. The material of the slider is generally plastic, which is easy to form and economical.

When customers have special use environment and requirements, the slider can also use metal parts.

At the same time, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
